VK2 Locker
Description
Dimensions
Color chart
Description

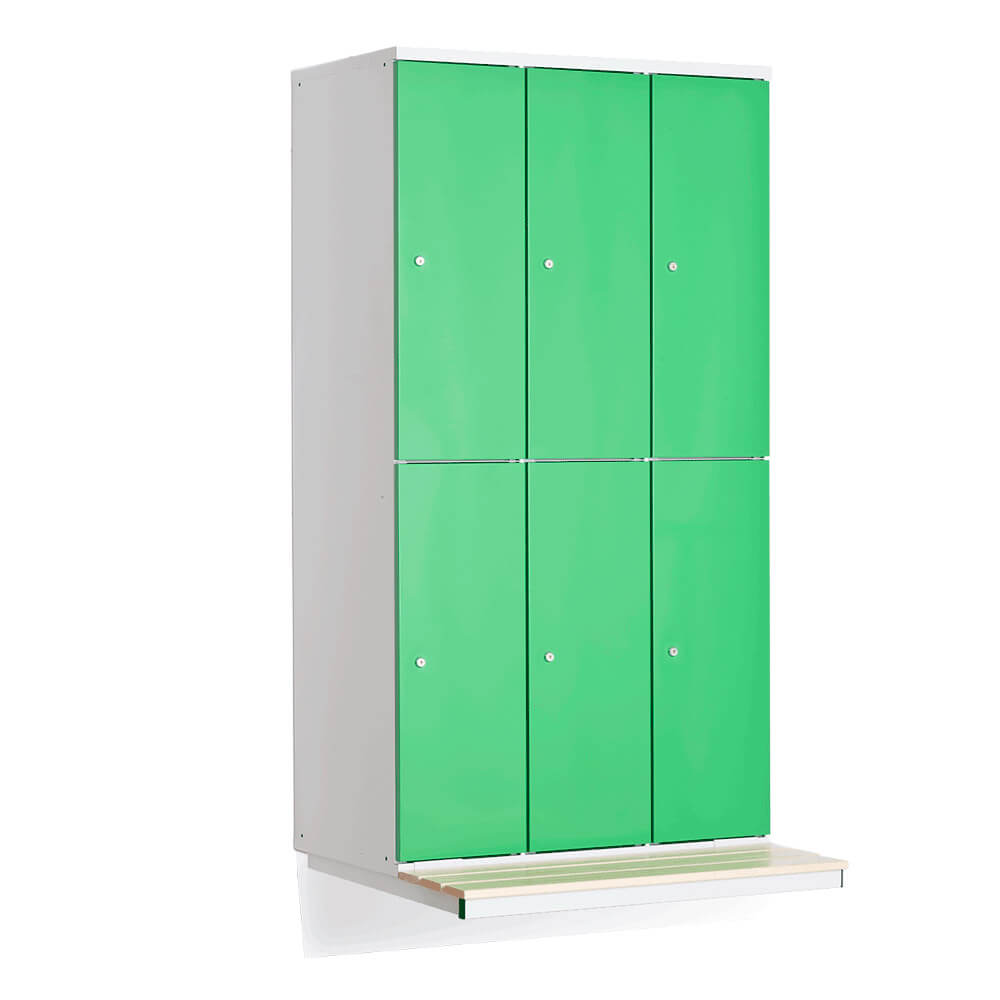

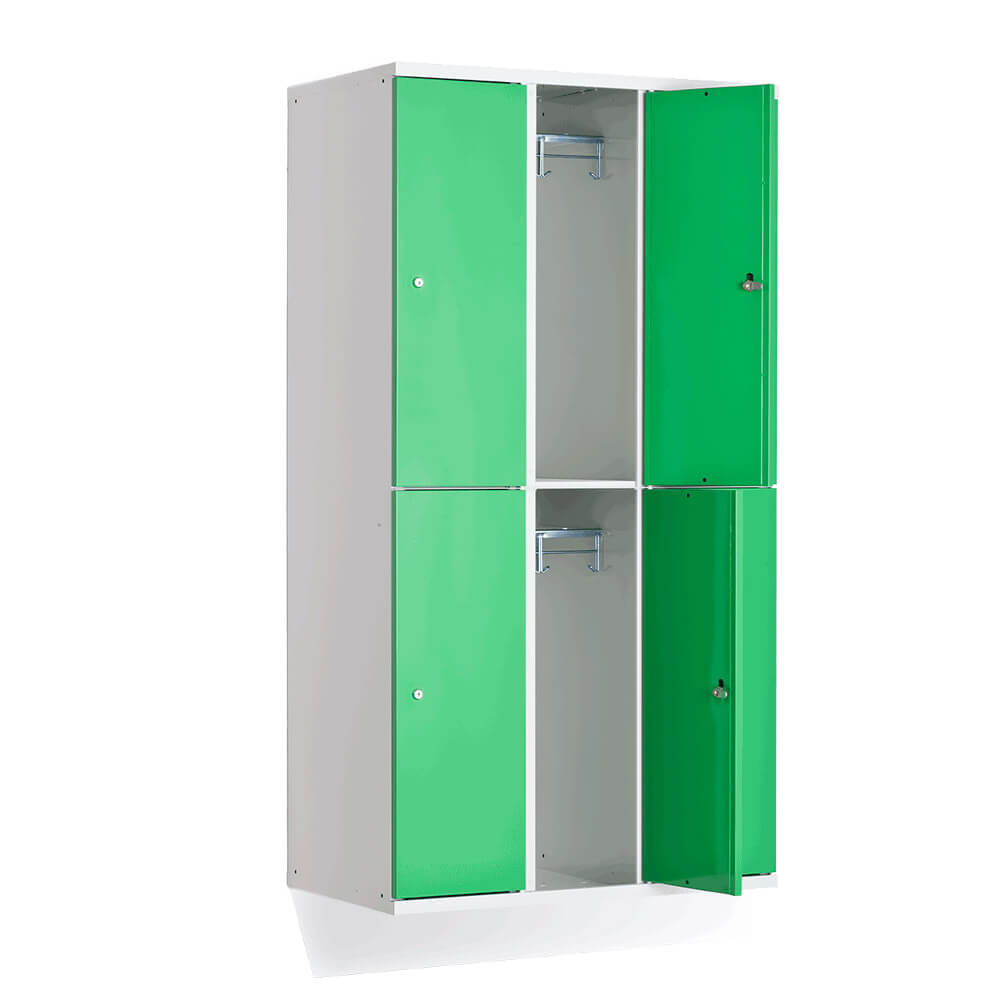

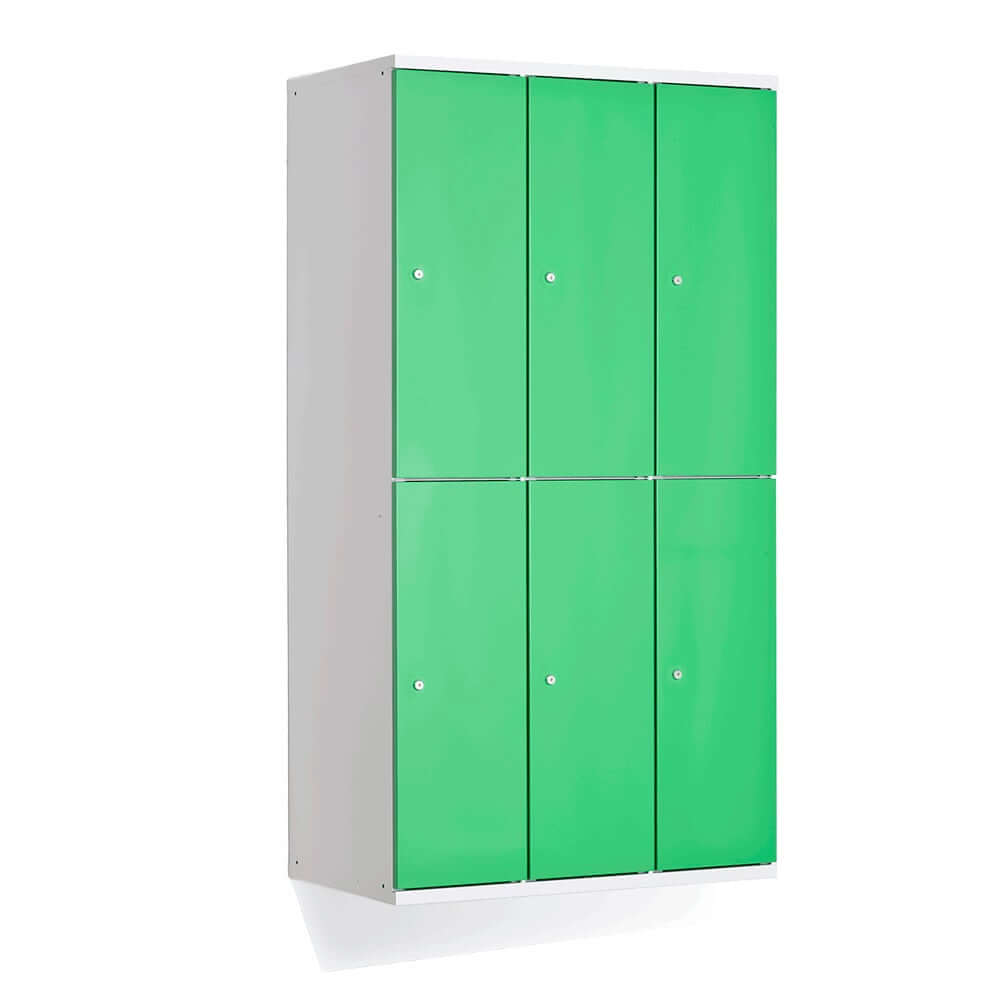

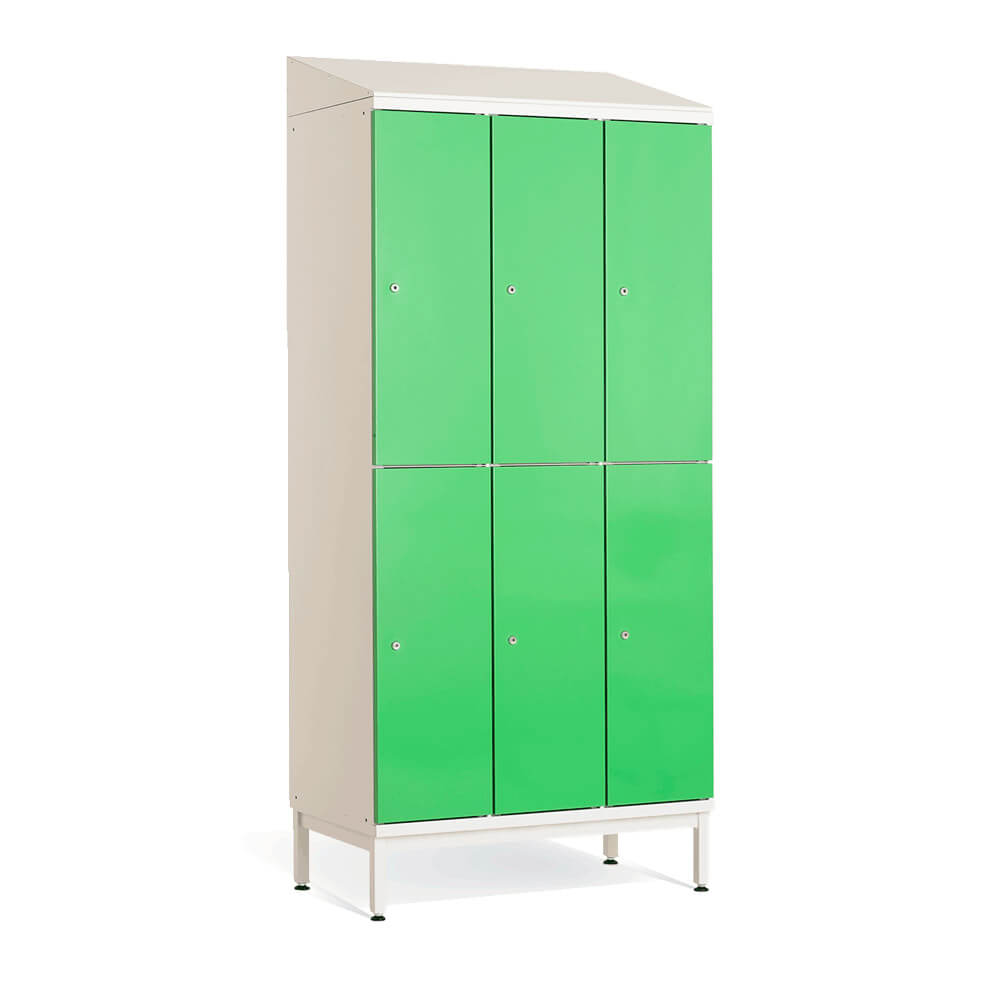

PUNTA VK2 lockers are intended for use in dressing rooms where a slightly shorter locker is desired to save space.
Standard locker includes:
Hat shelf
Hanger bar and coat hooks
PUNTA locks, Euro-Locks
Standard benches and lockers feature adjustable feet.
The basic material used in the lockers is cold-rolled, 0.75 mm steel plate. Can also be ordered galvanized.
Standard locker includes:
Standard benches and lockers feature adjustable feet.
The basic material used in the lockers is cold-rolled, 0.75 mm steel plate. Can also be ordered galvanized.
Dimensions
Standard width: 300 mm and 400 mm; 200 mm, 250 mm, 450 mm and 500 mm available by special order
Door opening: 300 mm compartment: 238 x 809 mm; 400 mm compartment: 338 x 809 mm
Standard depth: 532 mm; 402 mm available by special order
Standard height (frame): 1700 mm; 1500 mm and 1900 mm available by special order. Half-height versions also available.
Stand with adjustable feet (adjustment range: 50 mm); extra height: 200 mm.
Lockers are welded into 2-8 locker units; max. width: 1200 mm.
Door opening: 300 mm compartment: 238 x 809 mm; 400 mm compartment: 338 x 809 mm
Standard depth: 532 mm; 402 mm available by special order
Standard height (frame): 1700 mm; 1500 mm and 1900 mm available by special order. Half-height versions also available.
Stand with adjustable feet (adjustment range: 50 mm); extra height: 200 mm.
Lockers are welded into 2-8 locker units; max. width: 1200 mm.
Color chart
BASIC COLOURS
Price group 1
RAL 9002FT
Off-White
RAL 7035FT
Light Grey
OPTIONAL COLOURS
Price group 2
RAL 9006FT
Silver
RAL 9005FT
Black
RAL 1015FT
White Sand
RAL 6011FT
Reseda Green
RAL 9003FT
Signal White
RAL 5003FT
Sapphire Blue
RAL 9007FT
Aluminium
RAL 6019FT
Pastel Green
RAL 7024FT
Graphite Grey
RAL 5019FT
Capri Blue
RAL 5014FT
Blue Grey
RAL 9016FT
Traffic White
RAL 7036FT
Platinum
OPTIONAL COLOURS
Price group 3
