VKZ Locker
Description
Dimensions
Color chart
Description

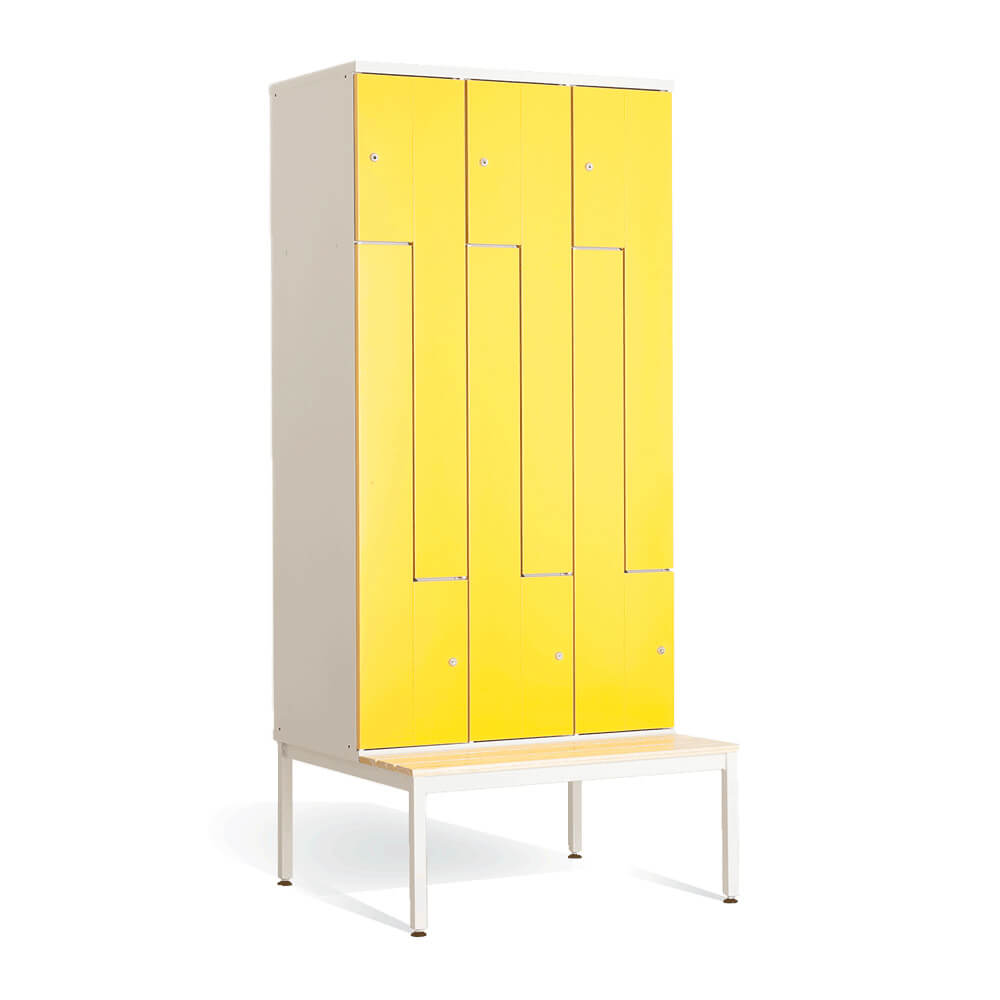

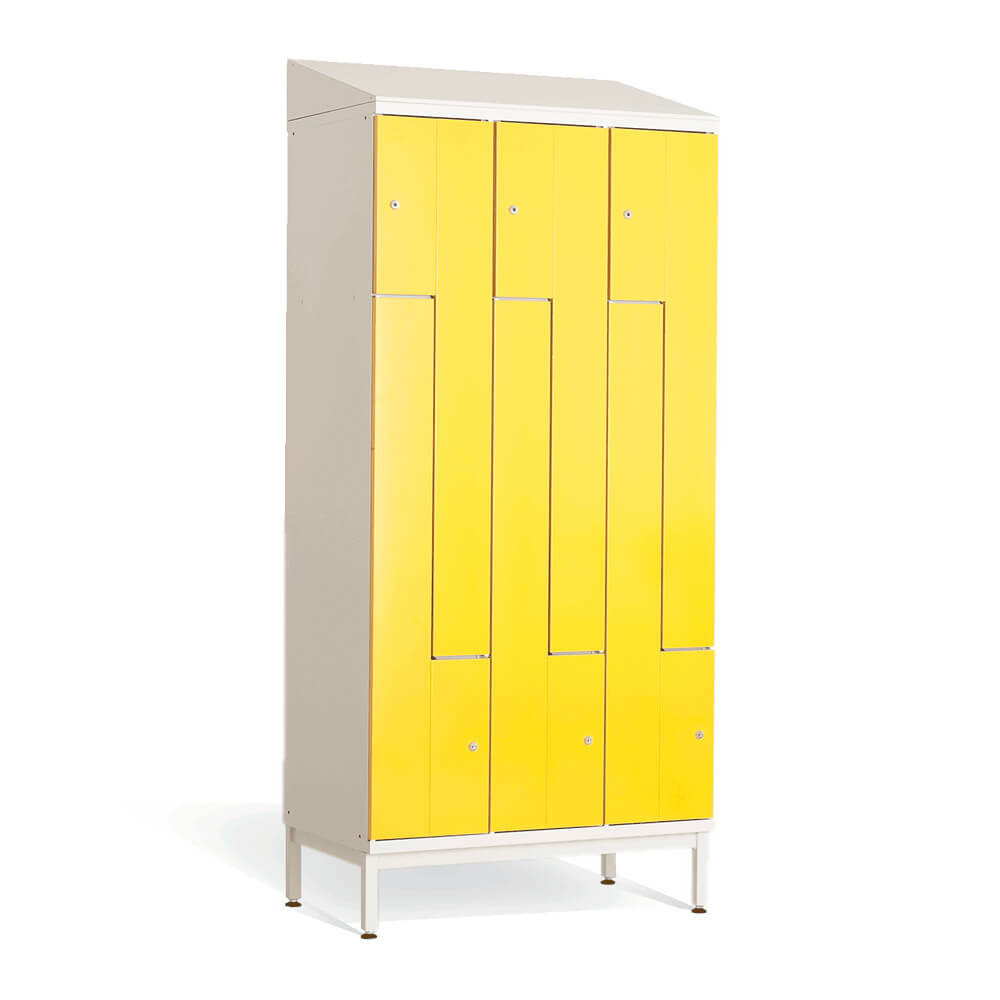

PUNTA VKZ lockers are intended for use in dressing rooms where a slightly narrower locker is desired to save space. Each customer is given a highl/narrow compartment for storing such items as coats or clubs/sticks and a short/wide compartment for bags and other such items.
Standard locker includes:
Coat hanger
Coat hooks
PUNTA locks, Euro-Locks
Standard benches and lockers feature adjustable feet.
The basic material used in the lockers is cold-rolled, 0.75 mm steel plate (galvanized, if necessary).
Standard locker includes:
Standard benches and lockers feature adjustable feet.
The basic material used in the lockers is cold-rolled, 0.75 mm steel plate (galvanized, if necessary).
Dimensions
Standard width: 300/150 mm and 400/200 mm; 500/250 mm available by special order
Standard depth: 532 mm; 402 mm available by special order
Standard height (frame): 1700 mm; 1500 mm and 1900 mm available by special order Stand with adjustable feet (adjustment range 50 mm); extra height: 200 mm.
Lockers are welded into 1-8 locker units; max. width: 1200 mm.
Standard depth: 532 mm; 402 mm available by special order
Standard height (frame): 1700 mm; 1500 mm and 1900 mm available by special order Stand with adjustable feet (adjustment range 50 mm); extra height: 200 mm.
Lockers are welded into 1-8 locker units; max. width: 1200 mm.
Color chart
BASIC COLOURS
Price group 1
RAL 9002FT
Off-White
RAL 7035FT
Light Grey
OPTIONAL COLOURS
Price group 2
RAL 9006FT
Silver
RAL 9005FT
Black
RAL 1015FT
White Sand
RAL 6011FT
Reseda Green
RAL 9003FT
Signal White
RAL 5003FT
Sapphire Blue
RAL 9007FT
Aluminium
RAL 6019FT
Pastel Green
RAL 7024FT
Graphite Grey
RAL 5019FT
Capri Blue
RAL 5014FT
Blue Grey
RAL 9016FT
Traffic White
RAL 7036FT
Platinum
OPTIONAL COLOURS
Price group 3
